IoT Short Flange Regulating Ball Valve PTFE Sealing with 4-20mA Feedback Signal AC220V DC24V Motorized Actuator Real-Time OLED Status Display

Brand Name : GRAT

Model Number : EK-20

Certification : IP66,CCC, ISO, CE,CNAS,SIL

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $150.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Type : On/Off

Power Supply : AC220V/DC24V

Ambient Temp : -30ºC~60ºC

Application : Food, Environmental Protection, Paper-making, Chemical Engineering, and Power

Action Time : 15S - 25S

Communication Protocol : Modbus

Torque : 20NM

Size : DN20 ( up to DN25 )

Speed Regulation Mode : PWM

Position Display : OLED

Backlash : 0.5%

Dead : 0.5%

Feedback : 0.5%

Contact Now

IoT Short Flange Regulating Ball Valve

Product Description

Compared with ordinary electric ball valves, it features a compact structure, smaller size, lighter weight, shorter distance between the valve seat and end flange (minimizing material retention), and superior sealing performance.

Suitable for occasions with strict sealing requirements, it is widely used in automatic control systems of industries such as chemical engineering, petroleum, pharmaceuticals, and light industry.

Features

  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
  • Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
  • Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
  • Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN15～40
Operating Power: AC220V, DC24V
Medium Temperature: -20℃～+350℃
(+200℃ with special seal)
Nominal Pressure: PN10, PN16
Control Method: Regulating or On-Off Control
Leakage Rate: Compliant with ANSI B16.104 Class 5 standard

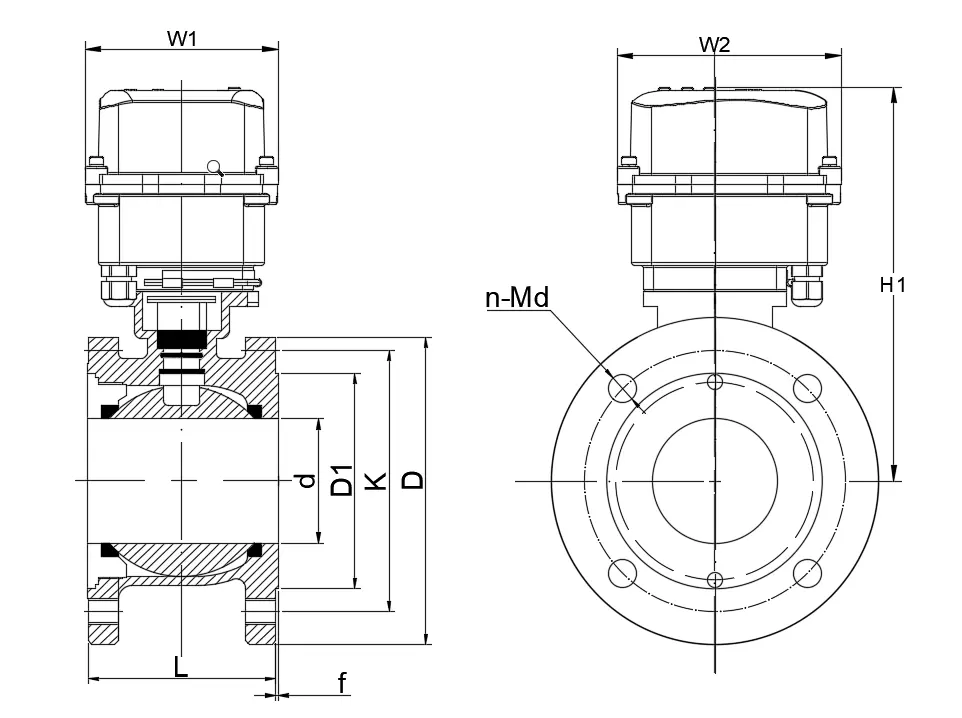

Physical Specifications

Connection Types:
- Flanged Connection
Seal Types: Elastic seal, high-temperature resistant polyphenylene sulfide (PPS)
Valve Body Materials: WCB, SUS304, SUS316
Valve Core Materials: SUS304, SUS316
Seat Materials:
- PTFE (normal temperature)
- special PPL (high temperature)
IP Rating: IP66

Suitable Media

  • Water
  • Petroleum
  • Nitric acid
  • Acetic acid
  • Viscous fluids
  • Strong oxidizing media
Other compatible media available upon request

Standards Compliance

Design & Manufacturing:
GB12237-2007
API 6D
Flange Standards:
JB/T 79-2015
GB/T 9124.1-2019
GB/T 9124.2-2019
ANSI B16.5
JIS B2239
Face-to-Face: GB12221-2005
Testing & Inspection: API 598
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
