IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body

Name: IoT Internal Thread ThreeWay Electric Actuated Ball Valve for HighPressure HVAC Water Treatment Systems SS304 Stainless Steel Body
Brand: GRAT
Price: 1 USD

Wholesale IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body from china suppliers

Brand Name : GRAT

Model Number : EK-20

Certification : IP66,CCC, ISO, CE,CNAS,SIL

Place of Origin : Wuhan, Hubei, China

MOQ : 1 pc

Price : USD $150.00/ Piece

Payment Terms : LC, T/T, D/P, PayPal, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 3 working days

Packaging Details : Carton/Wooden Box

Type : On/Off

Power Supply : AC220V/DC24V

Ambient Temp : -30ºC~60ºC

Application : Food, Environmental Protection, Paper-making, Chemical Engineering, and Power

Action Time : 15S - 25S

Communication Protocol : Modbus

Torque : 20NM

Size : DN20 ( up to DN25 )

Speed Regulation Mode : PWM

Position Display : OLED

Contact Now

IoT Three-Way Ball Valve

Product Description

Engineered for high-pressure differentials and clog-prone environments, the electric threaded ball valve lock ensures rapid switching and reliable pipeline media shut-off. With superior operational performance and exceptional cost-efficiency, it significantly outperforms solenoid valve counterparts in demanding industrial applications.

Features

Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN15～40

Operating Power: AC220V, DC24V

Medium Temperature: 0~120℃

Ambient Temperature: -30℃～60℃

Nominal Pressure: 0.1～1.6MPa

Control Method: On-Off Control

Actuation Time: 15–25 seconds

Physical Specifications

Connection Types:

- Female Threaded Connection

- Flanged Connection

Seal Type: Soft Seal

Valve Body Materials: SUS304, SUS316, WCB (Carbon Steel)

Valve Disc Materials: SUS304, SUS316

Sealing Element: EPDM, PTFE

IP Rating: IP66

Installation:

- Multi-angle installation

(Horizontal/inclined recommended)

Applications

Air conditioning systems
Fire protection systems
Water treatment facilities
Pipeline purging systems
Analytical instruments
Flue gas sampling systems

Standards Compliance

Design & Manufacturing:

GB12237-2007 (ISO 12237)

API 6D

Flange Standards:

GB/T 9124.1-2019

GB/T 9124.2-2019

GB17241.6-2008

Face-to-Face: GB12221-2005 (ISO 5752)

Testing & Inspection: API 598

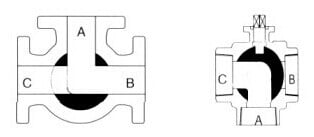

Electric three-way ball valve is divided into L-shaped flow passage and T-shaped flow passage

IoT Internal Thread Three-Way Electric Actuated Ball Valve for High-Pressure HVAC Water Treatment Systems SS304 Stainless Steel Body

T-type flow passage adopts 4-side valve seat, with balanced stress and reliable sealing. Mainly used for shunting, mixing, commutation and complete opening of three channels.

Face Seat for L-Style Flow Path. Mainly used for commutation of flow path.

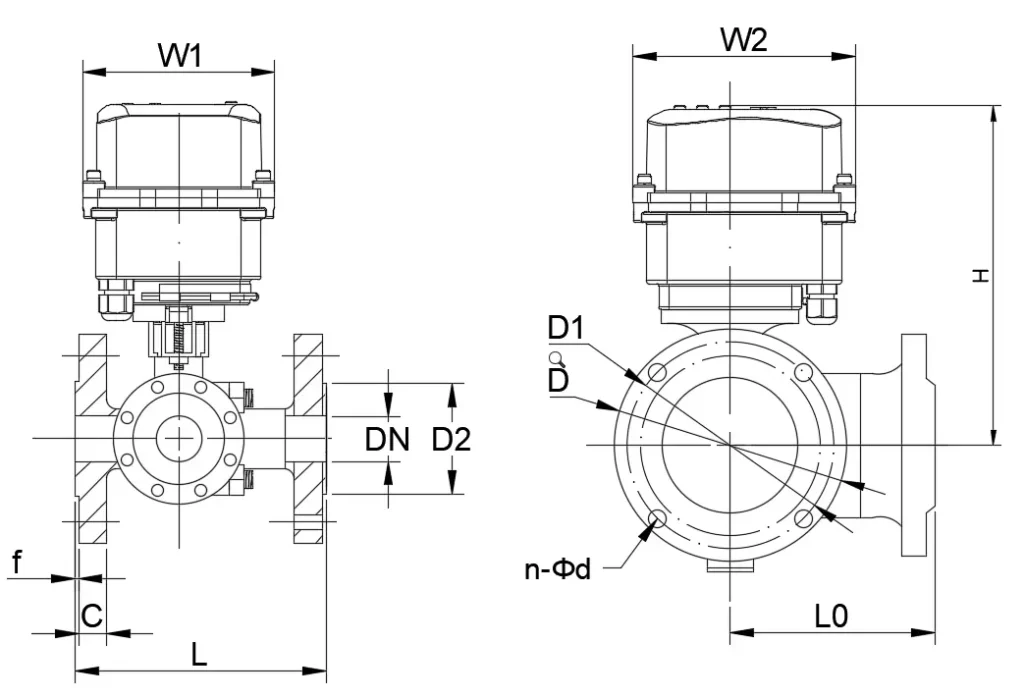

Installation Dimensions of IoT Mini Electric Flange Three-Way Ball Valve

Nominal Diameter (DN)	L	L0	D2	C	f	D	D1	H	n-Φd	W1	W2
15	150	75	45	14	2	95	65	143.5	4-Φ14	68.5	88.5
20	160	80	55	14	2	105	75	162	4-Φ14	93	108
25	180	90	65	14	2	115	85	178	4-Φ14	93	108
32	200	100	78	16	2	135	100	187	4-Φ18	93	108

Installation Dimensions of IoT Mini Electric Internal Thread Three-Way Ball Valve

Nominal Diameter (DN)	L	G	Φd	F	H1	H2	W1	W2
12	70	Thread Standard NPT BSP DIN etc	12	40	123.5	38	68.5	88.5
15	83		15	42	125.5	40	68.5	88.5
18	89		18	54	150	50	93	108
25	116		25	60	159	59	93	108
32	134		32	68	170	70	93	108

Circuit wiring diagram

Circuit Diagram

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
